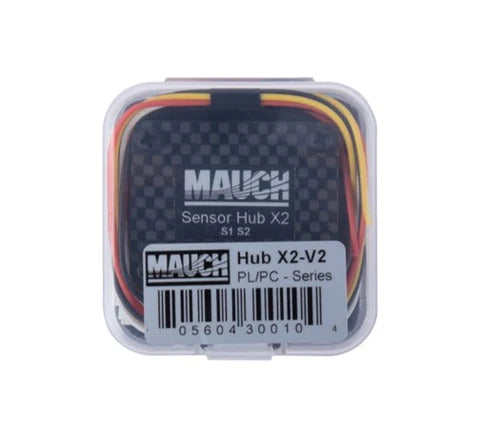

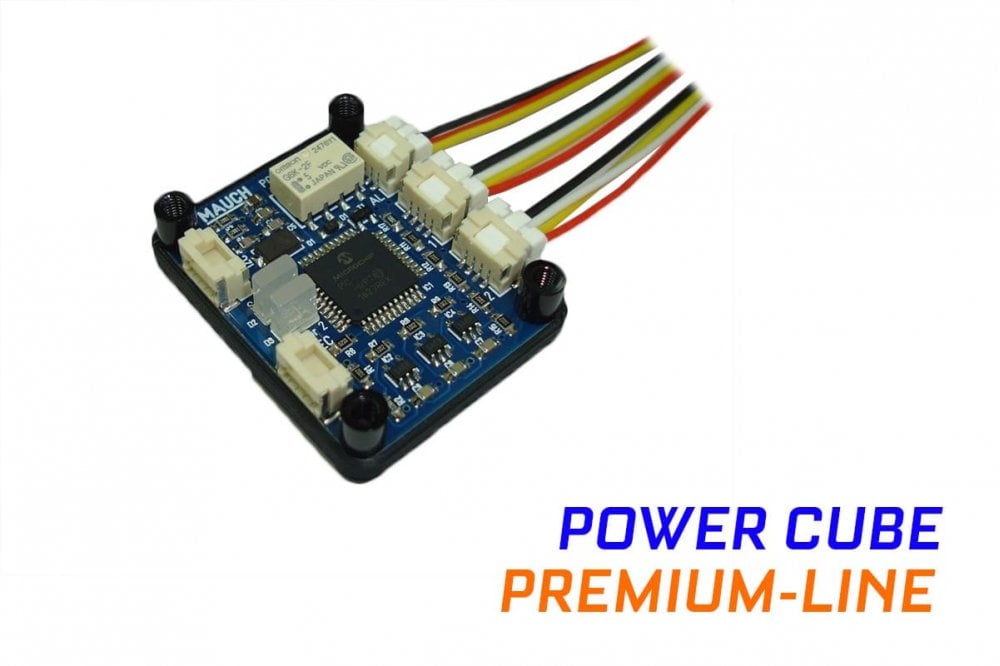

010: PL Sensor Hub X2-V2

010: PL Sensor Hub X2-V2

Regular price $46.51 USD
Regular price Sale price $46.51 USD
Sale Sold out

User Manual: DOWNLOAD

This sensor hub is to connect two PL-xxx current sensors in parallel. The current of both sensors will be summarized and passed to the FC. The voltage measurement of the LiPo packs will be collected from both sensors and passed through the Hub to the FC.

The main purpose of this hub is to replace existing protection circuits (like an ideal diode) and to monitor, that both paralleled LiPo’s supply the same current to the system.

Since we monitor the current of both batteries, we will find out very early when a LiPo starts to fail… before it is too late.

If the difference in current is larger than +/- 15%, the Alarm output will be ON to indicate the fault… the pilot should immediately land and check the batteries.

The I2C bus is for future integration.

To set up a complete system you would need:

1x PL Sensor Hub X2

2x Current sensor board:

2x PL-050 = 2x50A = 0-100A Total

2x PL-100 = 2x100A = 0-200A Total

2x PL-200 = 2x200A = 0-400A Total

1x Power supply, which can be any of the Premium-Line series BEC's

39mm x 31mm x 9mm / 7g without cables and without enclosure

42mm x 34mm x 10mm / 13g with enclosure and without cables

Delivery in PP box: 55 x 55 x 20mm / 27g

Scope of delivery:

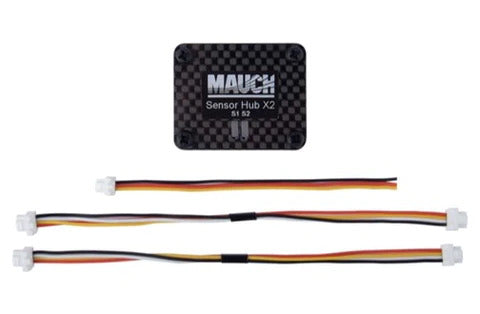

1x PL Sensor Hub X2

1x CFK enclosure

2x Sensor cable / Molex 1.25mm - 4p / L = 150mm

1x Alarm output cable / Molex 1.25mm - 3p / L = 100mm
