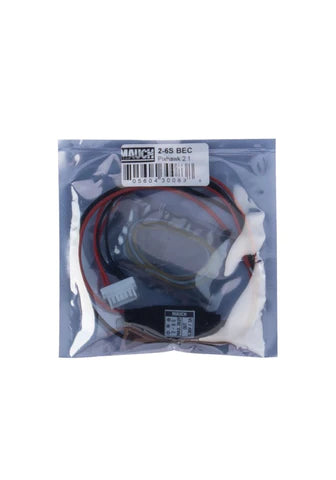

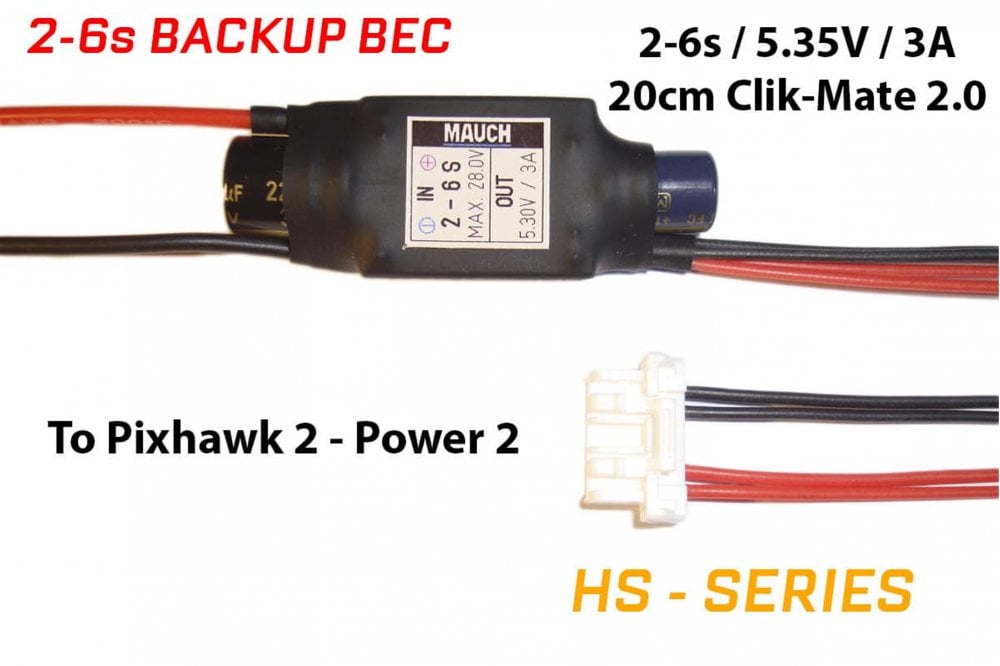

083: 2-6S Backup BEC for Pixhawk 2

Input 2-6S LiPo / max. 28V.

Output 5.35V / 3A -> +/- 0.05V –> Ripple 10mV (0.2%) at 1.5A output current.

Input wrong polarity protection, as well as Panasonic FM input and output capacitors to prevent burnout of the UBEC from voltage spikes.

20cm output cable with Molex / 6p / Clik-Mate 2.0mm. (To connect to Pixhawk 2 / Battery 2)

2x 20cm spare wires with Clik-Mate 2.0mm crimp, for Battery 2 current and voltage sense.

47mm x 18mm x 11mm / 9g with cables and shrinking tube
